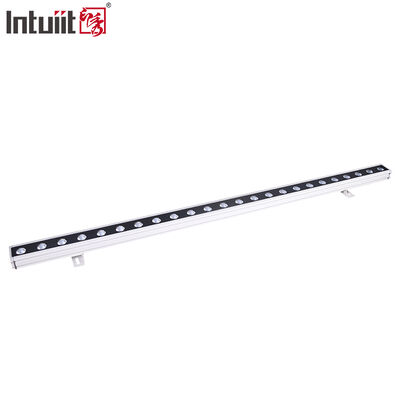

LED Wall Washer Lighting 36W IP65 LED Washer Light Wall Wsher Led Light
Détails sur le produit:
| Lieu d'origine: | Chine |
| Nom de marque: | Intuiit |
| Certification: | CE |
| Numéro de modèle: | IXQ17C |
Conditions de paiement et expédition:
| Quantité de commande min: | 50 ensembles |
|---|---|
| Détails d'emballage: | Carton |
| Délai de livraison: | 25-35 jours |
| Conditions de paiement: | LC, T/T |
| Capacité d'approvisionnement: | 10000pcs par mois |
|
Détail Infomation |
|||
| Taper: | Éclairage architectural de LED | Source de lumière: | DIRIGÉ |
|---|---|---|---|
| Tension d'entrée: | DC24V | Puissance de la lampe: | 36W |
| IP noté: | IP65 | Garantie: | 2 ans |
Description de produit
1. Specification
| Item Number | IXQ17C31(1M) IXQ17C39(0.5M) IXQ17C40(0.3M) |
IXQ17C16(1M) IXQ17C34(0.5M) IXQ17C33(0.3M) |
IXQ17C17(1M) IXQ17C35(0.5M) IXQ17C38(0.3M) |
IXQ17C20(1M) IXQ17C36(0.5M) IXQ17C29(0.3M) |
IXQ17C47(1M) |
| LED Qty | 24pcs(1M) / 12pcs(0.5M) / 6pcs(0.3M) | 16pcs(1M) | |||
| Beam Angle | 20°/30°/40°/20*40°Optional | ||||
| Spot Angle | 40°/50°/75°/45*75°Optional | ||||
| Lumen | 2260lm / 1116lm / 710lm | 1050lm / 650lm / 318lm | 1240lm / 610lm / 430lm | 1240lm | |
| CRI | Ra≥70 | / | / | / | |
| Color Tempreture | 2700∽6000K Optional | RGB | RGBW(W:3000 / 4000 / 6000K Optional) | ||

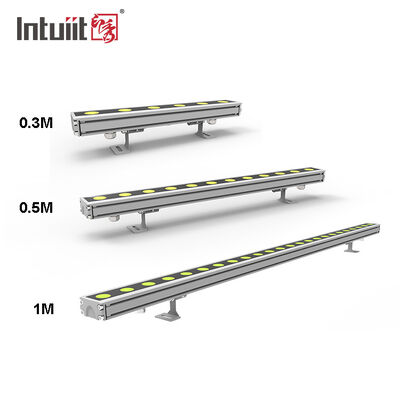

| Product Measurement | 1000*47*63MM(1M) / 510*47*63MM(0.5M) / 300*47*63MM(0.3M) | ||||
| N.W. | 1.9kg(1M) / 1.2kg(0.5M) / 0.8kg(0.3M) | ||||
| Input Voltage Range | DC24V | ||||
| Watts | 36W(1M) / 18W(0.5M) / 9W(0.3M) | ||||
| Power Factor | ＞0.9 | ||||
| Housing Material | Tensile Aluminum + die-cast aluminium | ||||
| Color | Matt black / Grey | ||||
| Cooling | Natural convection cooling | ||||
| Control Protocol | ON/OFF | DMX512 | DMX512 | DMX512 | DMX512-RDM |
| Segmented Control | / | 4Section(1M)/2 Section(0.5M)/1Section(0.3M) | 4 Section(1M) | ||
| Channel | / | 4 / 6 / 7 / 16 CH | |||
| Power /Installation | Independent | ||||
| Conection | 2pin rubber cable:input/output | black rubber cable 5 Pin In & Out | |||
| Power Linking | 5pcs(1m) / 8pcs(0.5m) / 12pcs(0.3m) | ||||
| DMX Linking | / | 32pcs(1M) / 64pcs(0.5M) / 128pcs(0.3M) | |||
| Certification | CE,RoHS | ||||

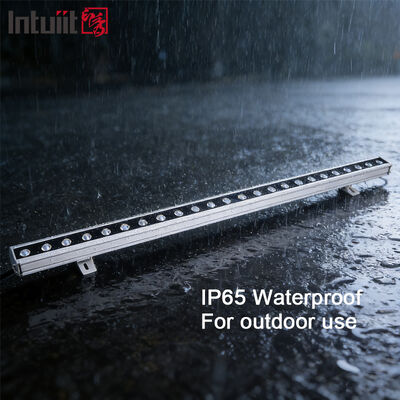

| IP Grade | IP65 | ||||
Product optic
Product size
Product installation:

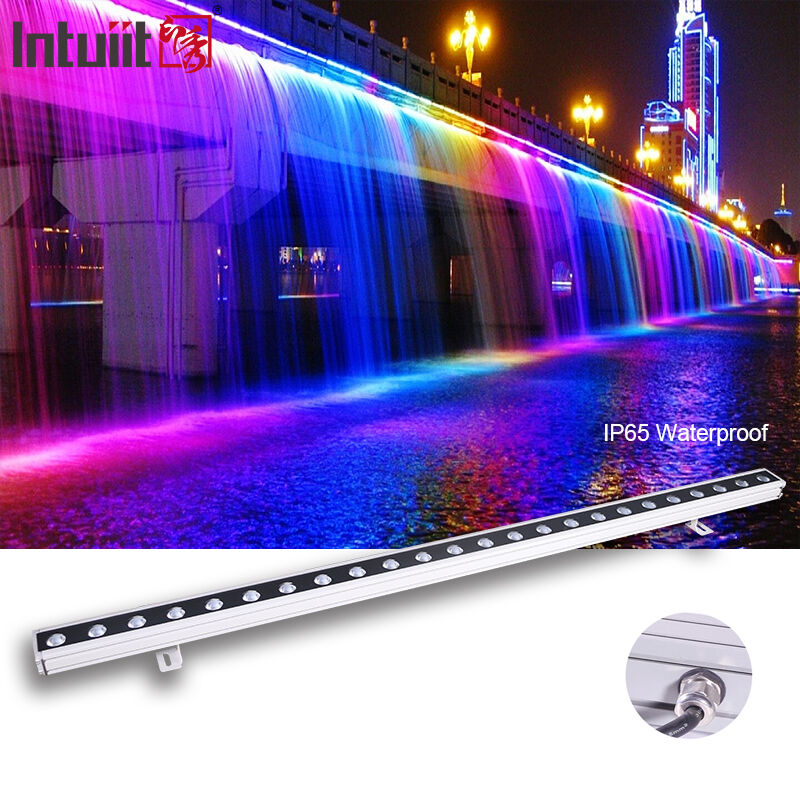

2. Effect show
